Four-layer high-density impedance controlled flexible circuit board
Leading by innovation, precision and reliability - Mingzhenghong Electronics provides high-quality, environmentally friendly PCB and FPC solutions for complex circuit designs, helping your products to be accurately interconnected and achieve excellent performance!
Mingzhenghong Electronics Co., Ltd. year 2011
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/高密度柔性电路板-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/高密度柔性电路板-1.jpg https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/高密度柔性电路板-2.jpg https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/高密度柔性电路板-3.jpg
Recommended Products
Product Details
Product Introduction

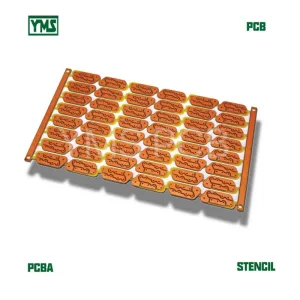

The four-layer flexible circuit board produced by Mingzhenghong Electronics Co., Ltd. is made of high-quality polyimide material with good mechanical flexibility and thermal stability. The surface treatment of this product is gold immersion process, and the thickness of the gold layer is 2 microns, which not only ensures solderability but also prolongs the life of the product. The product cover layer adopts yellow cover film and is matched with electromagnetic film to effectively improve the signal transmission stability and anti-interference ability. The product is also equipped with polyimide and FR-4 reinforcement board to enhance the mechanical stability of the overall structure.
Advantages and features
- High-quality polyimide material enhances the mechanical flexibility and thermal stability of the circuit board and adapts to harsh environments; - 2-micron immersion gold surface treatment technology improves welding performance and extends product service life; - Precision manufacturing, minimum line width /The line spacing is 2mil (approximately 0.051mm), and the minimum aperture is 0.15mm, meeting the needs of high-density wiring; - The yellow covering film is combined with the electromagnetic layer to ensure signal stability and anti-interference performance; - Introducing impedance control technology to ensure the consistency of electronic signal transmission and reliability to improve product performance.
Application Scenario
- LCD screen control panels and other display devices, ensuring delicate images and fast response times; - Mobile communication devices, such as smartphones and tablets, supporting high-speed data transmission and tight space layout; - Aerospace electronic systems, adaptable to extreme environments and Stability requirements for complex cable layouts; - High-end consumer electronics and complex electronic equipment, such as laptops and advanced cameras, provide one-stop complex circuit solutions; - Medical equipment, ensure accurate signal collection and processing, and promote the development of equipment miniaturization .
Related Certifications
Ordering Information
Custom Request
1. Customized demand description and technical requirements: Customers need to provide an exact circuit board functional description and detailed technical parameters, including required impedance values, line width/line spacing specifications, minimum aperture, and any special material or surface treatment requirements. Mingzhenghong will carry out customized production based on this information. 2. Quantity requirements and delivery time: Customers should specify the minimum order quantity and desired mass production quantity of customized products, while providing the desired delivery time frame. Mingzhenghong Electronics will ensure the delivery of products within the agreed delivery time based on production capacity and material supply. 3. Customized samples and customized prices: Mingzhenghong Electronics can provide preliminary samples for customer testing and verification. The customized price will be determined based on the customer's specific technical requirements, order quantity and material market price. A fee for customized samples may be charged, which is determined by negotiation between the parties. 4. Payment method and customization agreement: The customer and Mingzhenghong Electronics should sign a customization agreement to clarify product specifications, quantity, price and payment method. The payment method can be a combination of prepayment and cash on delivery, or other payment methods agreed upon by both parties. 5. After-sales service and cooperation methods: Mingzhenghong Electronics provides complete after-sales technical support and services. For customized products, the company will provide corresponding warranty periods and technical consulting services based on the nature of the product. The cooperation method can choose a long-term cooperation agreement to provide continuous supply and service guarantee.
