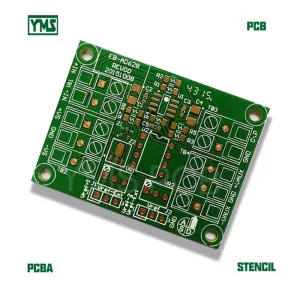

Rapid Prototyping Two-Layer PCB
Mingzhenghong Electronics' two-layer PCB uses FR-4 material, with rapid prototyping in just 12 hours, suitable for high-demand applications.
Mingzhenghong Electronics Co., Ltd. year 2011
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/12层-1.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/12层-1.jpg https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/12层-2.jpg https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/65aa3975b5fb0b089674052b/65af233dc2e9735675ca9aab/12层-3.jpg
Product Parameters
The main parameters
1. Product Name: Quickly prototype two-layer PCB circuit boards
2. Substrate material: FR-4
3. TG value: 135℃
4. Size: 100mm×100mm
5. Thickness: 1.6mm
6. Copper thickness between layers: 1 OZ
7. Minimum aperture: 0.4mm
8. Minimum line width/minimum line spacing: 6mil/6mil(0.15mm/0.15mm)
9. Surface treatment: Lead-Free HAL
10. Solder mask color: green
11. Silk screen color: White
12. Standard: Compliant with IPC-II standards
13. Application fields: CCTV, fire alarm, etc.
Product Details
Product Introduction
The rapid prototyping two-layer PCB circuit board provided by Mingzhenghong Electronics Co., Ltd. is made of FR-4 material as the substrate, with a TG value of 135°C, a size of 100mm × 100mm (about 3.937 inches × 3.937 inches), and a thickness of 1.6mm (63mil). The interlayer copper thickness is 1 OZ. This product has a minimum aperture of 0.4mm, a minimum line width and minimum line spacing of 6mil (0.15mm), and the surface treatment adopts Lead-Free HAL. The green solder mask combined with the white silk screen makes the product visually clear and easy to identify. This circuit board design complies with IPC-II standards and is suitable for CCTV, fire alarm and other fields. In response to the urgent needs of customers, our company can complete the rapid prototyping of the two-layer PCB within 12 hours. Mingzhenghong Electronics Co., Ltd. is committed to providing customers with high-quality, fast-delivery circuit board products and services, and is your trustworthy electronics manufacturing partner.
Advantages and features
- Using FR-4 base material, it has excellent electrical properties and mechanical strength, ensuring the stability and durability of the circuit board. - High TG value of 135℃ provides better thermal stability and performs well in high temperature applications. - Fine processing capabilities, capable of achieving a minimum aperture of 0.4mm and a minimum line width/line spacing of 6mil (0.15mm), adapting to the requirements of high-density integrated circuits. - Lead-Free HAL surface treatment helps meet environmental requirements while ensuring soldering quality and reliability. - Strictly comply with IPC-II standards to ensure that the quality of manufactured circuit boards meets industry standards. - Provide rapid prototyping services within 12 hours to meet urgent research and development needs and reduce product time to market.
Application Scenario
- CCTV System: Used to manufacture CCTV surveillance system circuit boards with high definition and stability requirements. - Fire alarm and safety systems: Suitable for designing circuit boards for fire alarms and other safety systems that require precise circuit layout and quick response capabilities. - Communication equipment: Suitable for prototype development of various communication equipment, such as wireless communication modules, routers, etc. - Medical instruments: Meet the high standards of circuit board accuracy and reliability required in medical equipment. - Industrial automation: Adapt to the requirements for circuit board performance stability and processing accuracy in automated control systems. - Automotive industry: used to develop automotive electronic components, such as sensors and control units, which require high-quality plates that are temperature-resistant and vibration-resistant.
Ordering Information
Custom Request
1. Description of customization requirements: Customers need to provide clear circuit board specifications and size requirements, including number of layers, material type, thickness, copper thickness grade, and requirements for special processes (such as blind and buried vias). 2. Technical requirements: Customers need to clarify technical parameters such as line width, line spacing, and aperture. Products must meet IPC-II standards and comply with environmental protection requirements such as RoHS and REACH. 3. Quantity requirements: Customers must indicate the expected order quantity, either small batch sampling or mass production, but should be informed in advance to arrange production lines and ensure supply chain management. 4. Delivery time and customized samples: The expected delivery date for samples and batch orders needs to be clearly defined. The standard requires that sampling can be completed within 12 hours. The delivery time for batch orders will be negotiated and determined based on the size and complexity of the order. 5. Customized price, payment method, customized agreement and after-sales service: After the customer accepts the quotation, we will provide detailed payment method choices, including T/T and other international payment methods. Orders will be placed in accordance with the signed customization agreement to ensure the rights and interests of both parties while providing professional after-sales technical support services.
Packing and shipping
1. Packaging specifications: Packed in a sturdy outer box made of environmentally friendly materials, the dimensions comply with international standards, and the interior is fixed with anti-shock materials to ensure that the circuit board remains stable during transportation and prevents collision and pressure damage. 2. Transportation method: Cooperate with mainstream international express companies to provide global express services, including DHL, FedEx, UPS, TNT, etc., to meet the needs of global customers to quickly receive products. 3. Identification marks: The product name, specifications, and warning signs such as "Fragile" and "Attention to Protection" are clearly marked on the outside of the box to guide express delivery and handling personnel to handle the goods correctly and safely. 4. Express delivery method: Standard and expedited delivery options are provided. Flexible choices can be made according to different needs of customers. Quick proofing orders can be completed within 12 hours to ensure timeliness. 5. Protective measures: Anti-static packaging is used inside the express package to protect each PCB to prevent electronic components from being affected by static electricity. An additional humidity indicator card is added to monitor the humidity in the box to ensure that the product is transported in the best condition. 6. Transportation costs: Relying on the cooperative relationship with international express companies, Mingzhenghong Electronics provides preferential freight prices. Compared with local express delivery services, customers can get more discounts. The specific costs vary according to the destination and express delivery choice.
Payment method
COMM
COMM
Refunds
If your purchase was not delivered, is defective or damaged, you can request a refund.
Corporate Information
Mingzhenghong Electronics Co., Ltd.
20000000
Total annual income
93%
On-time delivery rate
1h
Response time
6000 square meters
Construction area
Service Guarantee
Service Information
Tel
Address
North of the first and second floors of Factory Building No. 2, Yicheng Industrial Park, No. 11 Xinke Avenue, Xuexi Community, Tongqiao Town, Zhongkai High-tech Zone, Huizhou City
Advisory Message
Pre-sales advice
Pre-sales consultation contact information: 1. Contact number: +86-13924746688 2. Email: [email protected] 3. Official website: www.mingzhenghong.com 4. Company address: Tongqiao Town, Zhongkai High-tech Zone, Huizhou City, Guangdong Province Factory Building 2, Yicheng Industrial Park, No. 11 Xinke Avenue. Working hours: Monday to Friday 9:00 am - 6:00 pm Please contact us for more product information, quotations and customized services. Our professional sales team will provide you with comprehensive support and service.
After-sales service
1. After-sales response time: We will respond to user feedback within 24 hours on working days, and provide quick response service for urgent issues. 2. Repair service: For products that are not damaged by human factors during the warranty period, users can send the products back to our company for free repair, and the round-trip transportation costs incurred during the repair shall be borne by the user. For product repairs outside the warranty period, corresponding service fees will be charged, and the user shall bear the necessary material costs and transportation costs. 3. Return transportation arrangements: Users need to safely pack the products to be repaired and send them back to the address and method provided by our company. Please contact our after-sales service team to confirm the specific matters before shipment. 4. After-sales tracking service: For users who have enjoyed our company's after-sales service, we will conduct regular after-sales tracking surveys to collect user feedback and improve service quality.
10
Please contact us
11-50 pieces
Please contact us
Product Specifications Reference
Base material
FR-4 CEM-1 CEM-3
TG value
135℃ 150℃
size
100mm×100mm Customizable size 2.0mm 2.4mm
thickness
1.6mm 1.0mm 2.0mm
Copper thickness between layers
1 OZ 2 OZ
Minimum aperture
0.4mm 0.3mm
Minimum line width/space
6mil 5mil 4mil TNT Designated logistics
Surface treatment
Lead-Free HAL ENIG Volunteer Fire Department
Solder mask color
green blue black
Silk screen color
White yellow black Silver dip (Immersion Silver)
Production standards
IPC-II IPC-III Black Red Yellow
Due time
Standard proofing time 12-hour fast proofing service CEM-3 Copper substrate Aluminum substrate
Logistics options
DHL FedEx UPS
